V-RAPTOR XL 8K VV Production Pack from RED DIGITAL CINEMA adds a robust accessory selection to the V-RAPTOR XL 8K VV camera. This pack includes the V-RAPTOR 8K VV camera, four REDVOLT XL-G batteries, a dual-battery charger, an XL riser plate, two 2TB PRO CFexpress cards, a CFexpress card reader, a RED Touch 7″ LCD monitor, an XL top handle with extensions, top and bottom XL 15mm LWS support brackets, a 5-pin to dual-XLR audio adapter, and an 18″ DSMC3 RMI cable.

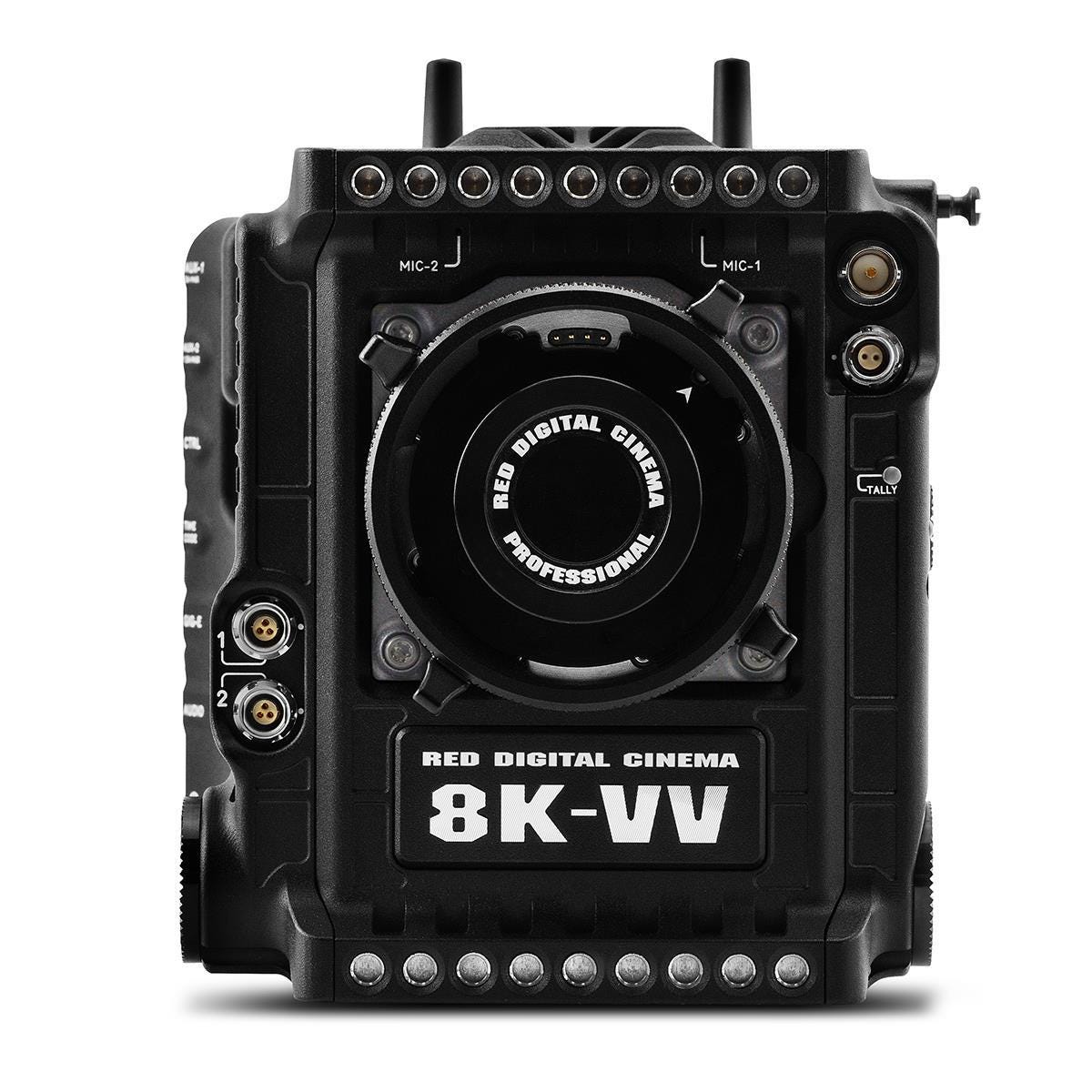

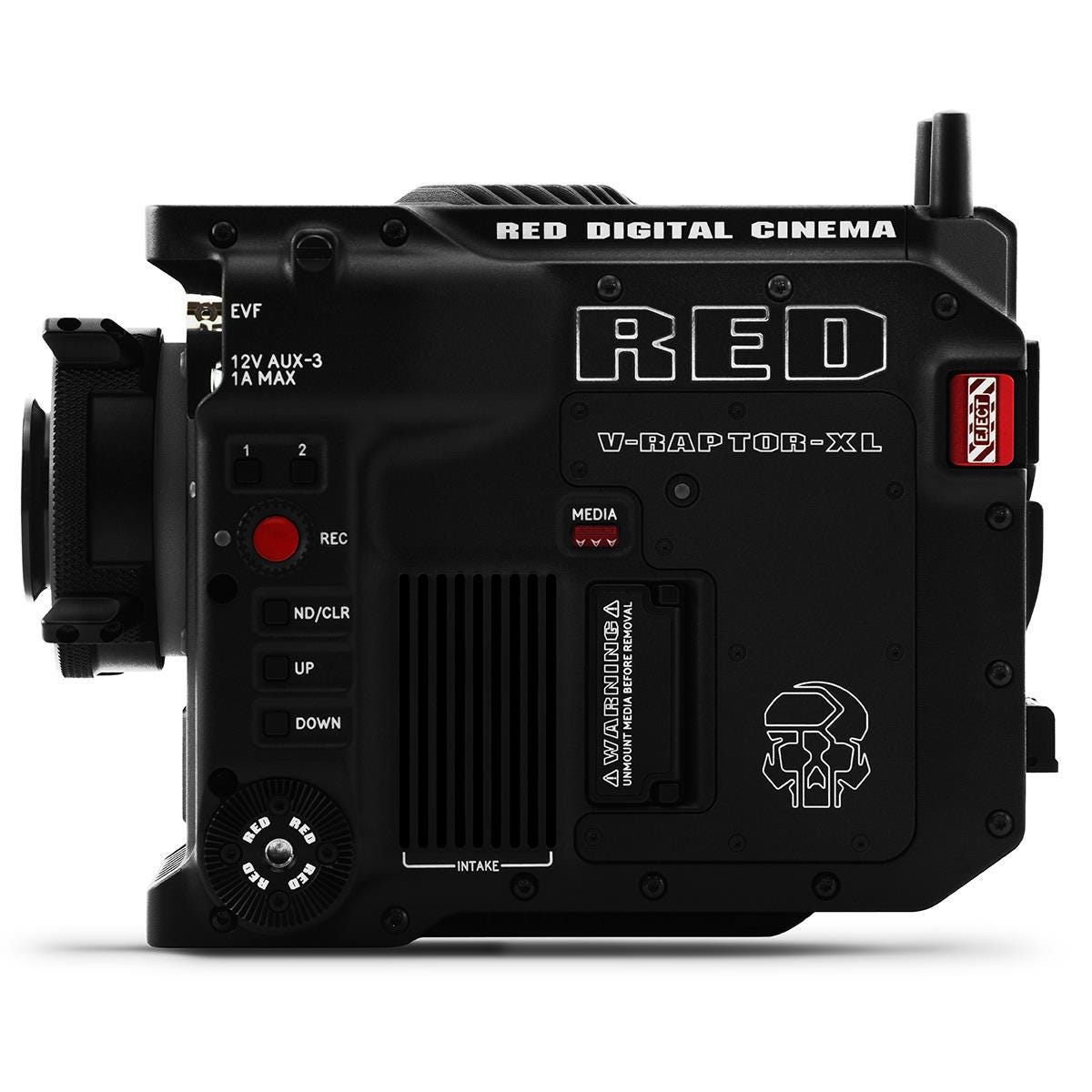

V-RAPTOR XL 8K VV Camera.
RED DIGITAL CINEMA’s V-RAPTOR XL 8K VV Camera is small, fast, and versatile. Interface contains 3 12G-SDI outputs, 12 and 24V voltage output, and Power through Gold mount.
Stunning 8K.
This successor to the V-RAPTOR offers multi-format recording in both 8K VV and 6K Super35, as well as an interchangeable lens mount and internal ND filters.
V-RAPTOR XL 8K VV Production Pack from RED DIGITAL CINEMA adds a robust accessory selection to the V-RAPTOR XL 8K VV camera. This pack includes the V-RAPTOR 8K VV camera, four REDVOLT XL-G batteries, a dual-battery charger, an XL riser plate, two 2TB PRO CFexpress cards, a CFexpress card reader, a RED Touch 7″ LCD monitor, an XL top handle with extensions, top and bottom XL 15mm LWS support brackets, a 5-pin to dual-XLR audio adapter, and an 18″ DSMC3 RMI cable.
– V-RAPTOR XL 8K VV Camera –
RED DIGITAL CINEMA’s V-RAPTOR XL 8K VV Camera is small, fast, and versatile. Interface contains 3 12G-SDI outputs, 12 and 24V voltage output, and Power through Gold mount. This successor to the V-RAPTOR offers multi-format recording in both 8K VV and 6K Super35, as well as an interchangeable lens mount and internal ND filters.
– DSMC3 Touch 7.0″ LCD Monitor –
The DSMC3 RED Touch 7.0″ LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P31 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom & more.
The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.
Note: The DSMC3 RED Touch 7.0″ LCD is not compatible with DSMC, DSMC2, RED RANGER or KOMODO camera systems.
– DSMC3 Touch 7.0″ Hood –
The DSMC3 RED Touch 7.0″ LCD Hood attaches easily and directly to the DSMC3 RED Touch 7.0″ LCD and can block out the sun to make viewing the LCD easier in bright conditions.
Compatibility: The DSMC3 RED Touch 7.0″ LCD Hood is only compatible with the DSMC3 RED Touch 7.0″ LCD.
– PRO CFexpress 2TB Memory Card –
Designed in collaboration with Angelbird Technologies to specifically meet the high-performance needs of the V-RAPTOR system and 8K acquisition, the RED PRO CFexpress 2TB is the official certified media cards for the V-RAPTOR camera system. The media is CFexpress 2.0 Type B compliant and supports precision recording of high bit-rate files with industrial-grade performance and durability extended through the capacity of the card.
2TB High Capacity
These cards meet all of RED’s quality, performance, and endurance specifications, with comparable performance to prior RED media options (e.g. RED MINI-MAGs).
Note: RED PRO CFexpress is not compatible with DSMC, DSMC2, RED RANGER or KOMODO camera systems.
– CFexpress Card Reader –
The RED CFexpress Card Reader is designed exclusively for offloading data from RED PRO CFexpress 2TB media cards to your workstation. Connect to your camera via USB 3.2 Gen 2×2 for fast ingestion of CFexpress (20 Gb/s).
For additional data safety, flip on the write-protect switch located at the back of the card reader.
– Compact Dual Gold Charger –
The RED Compact Dual Gold Mount Charger offers dual-simultaneous Gold Mount charging for the REDVOLT MICRO-G batteries. With up to 3amps to provide charge for two batteries in less than 4.5 hours, it will help ensure you can continue shooting with your V-RAPTOR.
RED Compact Dual Gold Mount Charger was designed in partnership with Core SWX and is compatible with most Gold Mount batteries.
– Top Handle with Extensions –
V-RAPTOR Top Handle w/ Extensions kit provides a complete modular Top Handle solution for V-RAPTOR allowing for light-weight or extended wrap around style configurations.
V-RAPTOR Top Handle features a dedicated Start/Stop Button, ergonomic Bocote wood inlays, and multiple 3/8-16 and 1/4-20 mounting points. Additionally, includes 1″, 3″ and 5″ Top Handle Extension pieces, Elbow piece and a 15mm Monitor Mount.
Notes:
• V-RAPTOR Tactical Top Plate is required to secure Top Handle Support Arm to the camera
• The V-RAPTOR Top Handle is not compatible with DSMC, DSMC2, RED RANGER or KOMODO camera systems
– DSMC3 5-Pin to Dual XLR Adapter –
The DSMC3 RED 5-Pin to Dual XLR Adapter is a compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports. The Adapter can provide 48V phantom power with mic and line input and is easily mounted to your V-RAPTOR via 3/8-16 screw.
Note: The DSMC3 RED 5-Pin to Dual XLR Adapter is not compatible with DSMC, DSMC2, RED RANGER or KOMODO camera systems.
– 18″ DSMC3 RMI Cable –
The DSMC3 RMI Cable (Straight-to-Straight) is an 18-inch high-quality cable that provides video, power & control from the RED Monitor Interface to the DSMC3 RED Touch 7.0″ LCD monitor.
Compatibility: The DSMC3 RMI Cable should only be used with the DSMC3 RED Touch 7.0″ LCD.
