Sony Airpeak S1 Professional Drone

Sony Airpeak S1.

Break the boundaries of aerial expression.
Advanced drone technology to inspire creators to new heights. The sky is your canvas. Let your creativity soar.

Better Integration for More Creativity
The Airpeak system enhances creativity for a seamless drone experience, Airpeak S1 is supported by a remote controller, an app and cloud service which work together to create a high-performance aircraft system. From piloting and camera work to flight programming and data management, the Airpeak system is comprehensive and easy to use.

• Optimized Design for Exceptional Performance
• Sensing Technology for Flight Stability
• Versatile Camera and Lens Compatibility
• Intuitive Control
• Automated Flight for Workflow Efficiency

Airpeak is prohibited from being used for military use. For details of prohibited activities see: https://electronics.sony.com/airpeak/terms/eula

Optimized Design For Exceptional Performance.

Powerful Flight Performance
With a max speed of 55.9mph (25m/s), maximum angular velocity of 180 Degree /s and attitude angle up to 55 Degree , Airpeak S1 offers incredible creative freedom for dynamic professional aerial imagery.

Dedicated Propulsion Device and Flight Controller
Airpeak S1’s propulsion system is designed by Sony engineers to achieve maximum flight performance and energy efficiency. The powerful yet lightweight brushless motor optimizes 17-inch propellers for maximum power and minimum energy loss, and the Electric Speed Controller (ESC) is carefully designed to regulate the whole system for peak efficiency. By integrating this propulsion system to the information from the sensors, it realizes increased stability and highly responsive flight control.

Stable Flight in High Winds
The propellers, motor and ESC that make up the flight propulsion system, combined with the dedicated remote controller have achieved optimal wind resistance. Airpeak S1 can withstand wind speeds as high as 20m/s, and can maintain stable flight in erratic upper-level winds and strong low-level canyon and coastal winds.

Max 22 Minute Flight Time (Without Payload)
Airpeak S1 has a maximum flight time of 22 minutes without a payload, and can still maintain flight for up to 12 minutes when fitted with a heavy payload like the a7S III and FE 24mm F1.4 GM. The hot-swappable battery allows for power supply exchange without powering down the aircraft for minimal downtime.

Retractable landing gear for unobstructed camera field of view
Airpeak S1 is fitted with a landing gear with open/close legs in-flight, allowing the gimbal to pan without worrying about them appearing into images.

Easily Detachable Propellers
The propellors are light, compact, and exceptionally durable, and the quick release mechanism makes for easy attachment and removal.

Sensing Technology For Flight Stability.

High Performance Sensors for Precise Positioning
Equipped with Sony’s image sensor 5-way stereo cameras (front, back, left, right, down), visual information is fed to the high-speed Vision Sensing Processor and proprietary algorithm. By integrating this information to IMU (Inertial Measurement Unit), compass, barometric pressure, and infrared range sensors, Airpeak S1 perceive its real-time location and positioning with incredible precision, even in enclosed spaces or when out of range of GNSS (Global Navigation Satellite System), to ensure a stable flight.

Increased Stability in Low-Level Flight

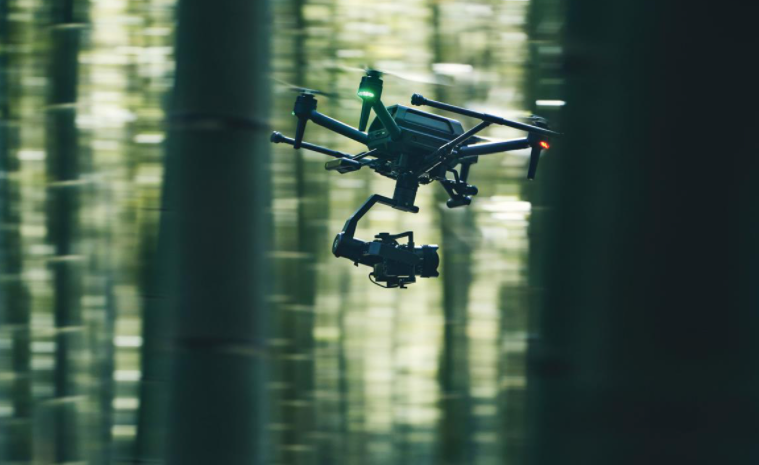

High-precision sensors and the refined flight algorithm enable Airpeak S1 to accurately determine its environment, location, and positioning and keep low-level flight shake to a minimum. Airpeak S1 can fly smoothly and safely through wooded and obstacle heavy areas, for steady shooting even in the most demanding close ups.

Multi-Directional Sensing for Obstacle Avoidance
Airpeak S1 combines five directional stereo cameras with infrared range sensor for optimal obstacle avoidance. The automatic deceleration and braking functions allow it to intuitively respond to the environment and its situation. The “obstacle brake function” can be enabled in both automated and manual modes, and there is the option to restrict sensing to a specific direction, or disable the braking function altogether.

Versatile Camera & Lens Capability.

The Smallest Drone in its Class for Alpha mirrorless cameras
With a custom-designed powerful motor and compact frame, Airpeak S1 is capable of carrying a camera system (including gimbal) of up to 5.5lbs (2.5 kg). Fully compatible with Alpha series full-frame mirrorless cameras, Airpeak S1 opens up the possibilities for professional creators.

Diverse Options for Cameras and Lenses
Airpeak S1 is compatible with a huge range of cameras and lenses, allowing creators to choose the perfect setup for their needs. Powerful low-light cameras like the a7S series or FX3 leverage high sensitivity with stability to capture vivid images even in dark conditions. High-resolution cameras like the a7R series can achieve aerial imagery of outstanding quality, with huge potential for commercial and industrial applications. a9 series will capture high quality images with ultimately low distortion, and a 1 can shoot in the air with 8K quality. For lenses, Airpeak S1 is compatible with select E-mount prime lenses. You can match the best model for your application.

Exclusively made Gremsy Gimbals
As a dedicated accessory for Airpeak S1, there is Gremsy gimbal “T3 for Airpeak” that is compatible with Alpha series cameras. Once the gimbal is connected, the quick release mechanism allows for easy attachment. And the temperature controlled IMU allows for accurate control of the gimbal in any temperature.

Intuitive Control.

Remote Controller with Optimal Functionality
Developed for professionals in mind, the remote controller combines superior functionality with a comfortable design. It allows for a live view during the flight and real-time control over the aircraft and gimbal. There are four customizable buttons, and the aircraft, camera, and gimbal buttons can be changed according to requirements. It is also designed to fit comfortably in the hand. The grip is shaped for secure handling, and the control stick is based on a design by the Futaba Corporation, popular with drone pilots. The holder allows for a maximum of 178.5 mm making it compatible with smartphones and tablets. It also has an HDMI port for connecting to an external screen.

Aircraft and Equipment Management with “Airpeak Flight” app
“Airpeak Flight” is a mobile app for comprehensive monitoring and management of the aircraft, remote controller, camera, and gimbal. From checking flight distance and battery usage, to adjusting camera settings, the app is designed to optimize the flight experience. Airpeak Flight is fully compatible with Alpha full-frame mirrorless cameras, allowing for camera adjustments during flight. “Airpeak Flight” can be used both with manual and automated flight modes. During the “Mission Flight mode”, the app can be used to confirm the route, execute the mission, check the status of the aircraft, and monitor the equipment.

Dual Operation Mode for Independent Control of Aircraft and Gimbal/Camera
The “Dual Operation Mode” allows two operators to control the aircraft and gimbal/camera separately, allowing for more precision control in complex shooting conditions. By placing the FPV camera on the nose of the aircraft, the pilot can control FPV tilt and check the flight direction and angle, while the camera operator continues capturing images. In addition, when two operators are using the remote controllers, the control stick and buttons will automatically be assigned to the pilot and camera operator accordingly.

Optional Flight Modes for Diverse Needs
Airpeak S1 is equipped with several different flight modes to make flying and creating even easier. The default Velocity Mode was developed in-house. This mode differs from a regular Position Mode by reducing the effects of wind and external influences on hovering, turning and manoeuvring, making it easier to recreate flight routes with more accuracy. By enabling “On Course Function”, the pilot can accomplish accurate and flawless recreation of a circular flight path with ease. Each flight mode allows for customization of maximum speeds, angles, acceleration rates and other parameters. Whether for speed and power, or smooth and steady, pilots will be able to find the flight mode to support optimal performance. Airpeak S1 also comes with Standard Mode which all sensors including obstacle detection is turned on as default for a safe and stable flight experience.
